Alustar partition EI 30/12.5 mm / EI 30/15 mm / EI 60/25 mm - push release
Price range: 181,82€ through 282,01€
Fire Star inspection hatch for EI30 / EI60 service ducts - 4-sided key
Price range: 341,40€ through 416,90€
Description

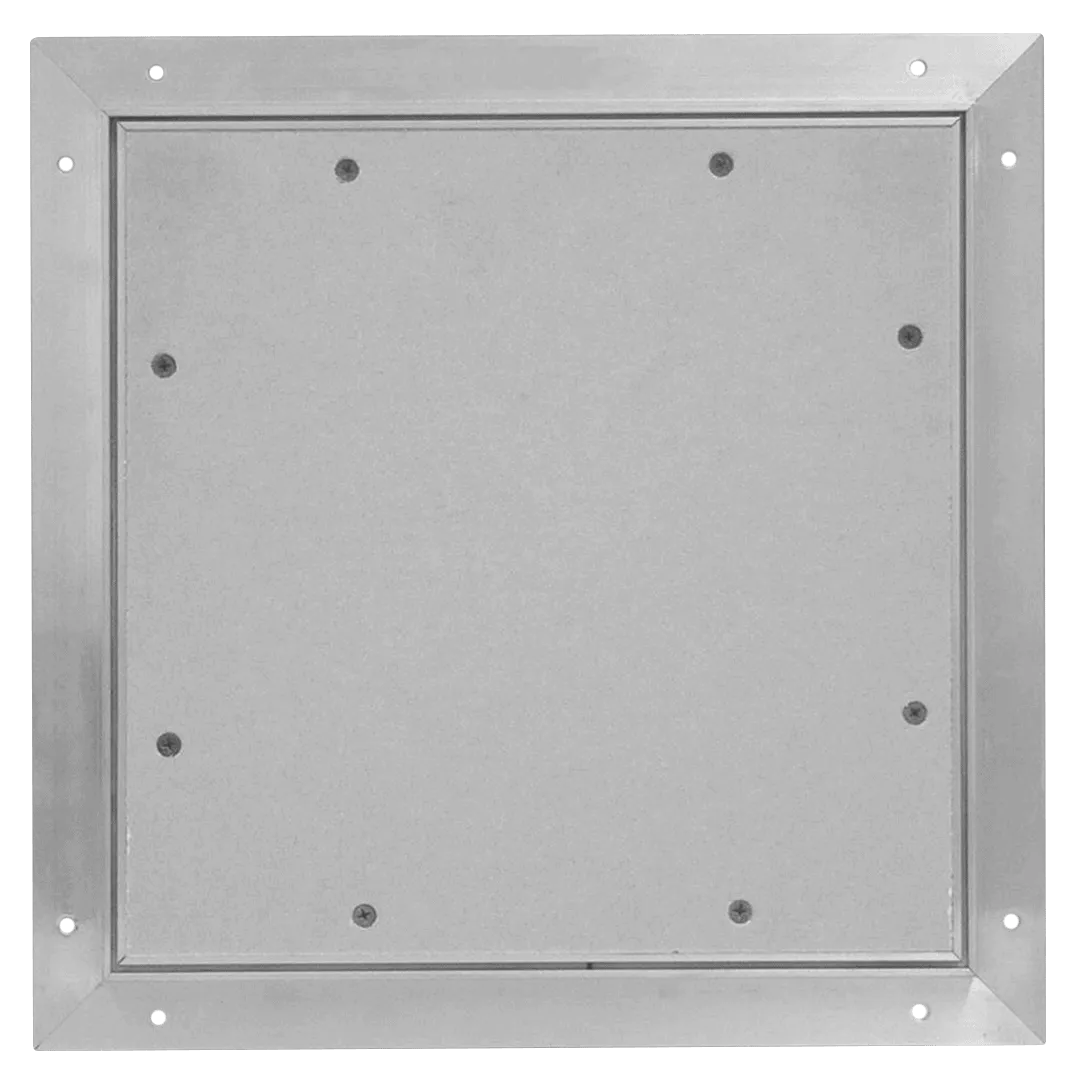

Air and smoke-tight access hatch for EI 30 partition push 12.5 mm Alustar release
- F 30 tested to DIN EN 4102-2:1977-09
- Similar design to ALU-STAR, but with rubber seals
Partition walls: tested to DIN EN 1364-1:1999-10
F 30/ EI 30 on both sides - Airtight model, tested to DIN EN 14351
Class 4 overpressure, class 3 vacuum, max. 600 PA
Test report MPA NRW 120002612-21/ 28 - Smoke-tight model, tested to DIN 18095-2,
test report MPA NRW 120003320-07 - Wall-mounted, top lock, 1st side = stop side
- Rectangular hatches (catalog dimensions)
Stop side = long side
Airtight and smoketight access hatch for EI 60 partition push 25 mm Alustar release
- F 60 tested to DIN EN 4102-2:1977-09
- Similar design to ALU-STAR, but with rubber seals
Partition walls: tested to DIN EN 1364-1:1999-10
F 60/EI 60 on both sides - Airtight model, tested to DIN EN 14351
Class 4 overpressure, class 3 vacuum, max. 600 PA
Test report MPA NRW 120002612-21/ 28 - Smoke-tight model, tested to DIN 18095-2,
test report MPA NRW 120003320-07 - Wall-mounted, top lock, 1st side = stop side
- Rectangular hatches (catalog dimensions)
Stop side = long side
Additional information
| Brand | Upmann |
|---|---|
| Dimensions | 200×200 mm, 300×300 mm, 400×400 mm, 500×500 mm, 600×600 mm |
| Product Thickness | EI 30 / 12.5 mm, EI 60 / 25 mm |
| Installation | Partitions |
| Fire protection | F/EI/I 120, F/EI/I 60 |
| Aperture system | Push and release |
| Product features | Air- and smoke-tight, Firestops |
